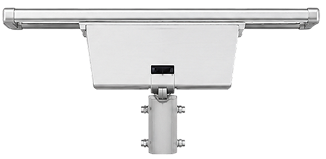

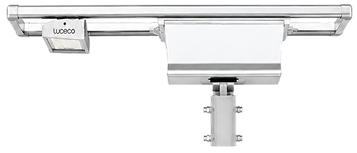

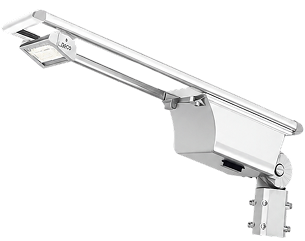

REVOLVE120 All-in-One Solar Streetlight

REVOLVE120 All-in-One Solar Streetlight

Autonomous solar street lighting engineered for Middle East roads, delivering off-grid illumination, motion-adaptive control, and rapid deployment across UAE highways, townships, and urban corridors.

Overview

Gerab Energy Systems, an authorized Cooper Lighting Solutions distributor across the Emirates, offers the REVOLVE120: a fully integrated photovoltaic luminaire with LED engine, monocrystalline panel, lithium iron phosphate battery, and microwave motion sensor in one die-cast housing. It delivers up to 17,500 lumens without grid dependence, eliminating trenching and cabling capex for municipalities and developers. Deploy it across community roads, highway service lanes, and off-grid corridors to hit Estidama and NET-ZERO targets.

REVOLVE120 All-in-One Solar Streetlight
REVOLVE120 All-in-One Solar Streetlight
REVOLVE120 All-in-One Solar Streetlight

The REVOLVE120 consolidates every functional component of a modern LED solar street light into one weatherproof, easy-mount unit. Engineered specifically for GCC road conditions, it eliminates the trenching, cabling, and feeder pillar work required by conventional pole lighting, compressing deployment timelines from weeks to days.

  • Integrated monocrystalline solar panel with lithium iron phosphate battery for full-night autonomy.
  • IP65 die-cast aluminium housing built for desert heat, airborne sand, and coastal humidity.
  • Built-in microwave motion sensor triggers full output only on vehicle or pedestrian detection.
  • Direct fit on standard 60mm spigot poles for zero-trench retrofit installation.

Every design element is calibrated for the operational realities of desert climates, extended dark hours, and municipal accountability standards. The luminaire prioritises reliability, uptime, and measurable energy performance, giving asset owners predictable outcomes.

  • LED efficacy exceeding 190 lumens per watt for Class M road compliance.
  • Adaptive dimming holds twenty percent output during vacant periods and ramps to full brightness on detection.
  • Wattage range from 27W to 95W covers pedestrian pathways through highway service lanes.
  • Sealed enclosure prevents sand ingress, a common failure point in imported solar streetlight units.

The REVOLVE120 configuration matrix accommodates residential lanes, service roads, and industrial perimeters from one product family. Detailed technical parameters below allow engineering consultants to specify accurately against Estidama compliance frameworks used across UAE infrastructure programmes.

  • Power ratings: 27W/5000lm, 40W/7200lm, 50W/9000lm, 67W/12000lm, and 95W/17500lm.
  • Luminous efficacy above 180 lumens per watt; LED rated L80B10 beyond 50,000 hours.
  • IP65 die-cast aluminium body with silicone-gasket sealing and tempered glass cover.
  • In-built microwave sensor with programmable adaptive dimming; fits standard 60mm spigot poles.

Applications

Urban & Municipal Street Lighting

Urban & Municipal Street Lighting

Highways & Expressways

Highways & Expressways

Residential Roads & Townships

Residential Roads & Townships

Smart City Infrastructure Projects

Smart City Infrastructure Projects

Parking Areas & Public Spaces

Parking Areas & Public Spaces

Industrial & Commercial Complexes

Industrial & Commercial Complexes

Pedestrian Pathways & Parks

Pedestrian Pathways & Parks

Campuses (Airports, Universities, Hospitals)

Campuses (Airports, Universities, Hospitals)

Key Projects

We have deployed the REVOLVE120 across UAE roadway, township, and off-grid infrastructure programmes where zero-grid dependency, rapid rollout, and long-term autonomy were non-negotiable specifications.

Project Name: DUBAI AIRPORT
Location: DUBAI
Year Of Supply : 2023
Application: LED HIGHBAY & WEATHER PROOF LIGHTING
End Client: DUBAI AIRPORT
Consultant: DUBAI AIRPORT AUTHORITY
Led Brand: COOPER
Project Name: FLEXIGISTIC - GNE JAFZA WAREHOUSE
Location: DUBAI
Year Of Supply : 2025
Application: LED HIGHBAY & WEATHER PROOF LIGHTING
End Client: GNE
Consultant: GES
Led Brand: COOPER
Project Name: DIFC
Location: DUBAI
Year Of Supply : 2025
Application: SOLAR ALL IN ONE LED STREET LIGHTING
End Client: DIFC
Consultant: AECOM
Led Brand: COOPER
