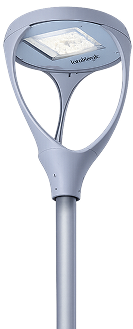

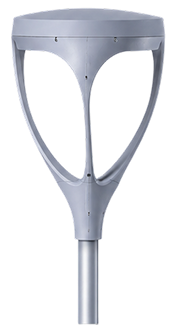

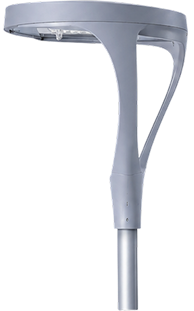

Gerab Energy Systems supplies the LiteMagic Urban luminaire across the Emirates for cities, developers, and facility teams that need dependable outdoor illumination without visual clutter. The fixture pairs a die-cast aluminium body with high-efficiency LED optics, delivering up to 12,000 lumens at 125+ lm/W. Multiple wattage packages, five design variants, and side-entry, post-top, suspend, and classic-suspend mounting options make it a flexible urban lighting choice.
The product is built for versatile outdoor projects where lighting quality, aesthetic finish, and long-term reliability all matter. Available in 33W, 66W, and 100W packages with 3000K or 4000K colour temperatures, the fixture supports both modern developments and heritage districts through a modular platform that unifies design language across complex urban schemes without compromising photometric control.
Beyond aesthetics, the platform is engineered around long-life optical and electrical performance in demanding outdoor conditions. Each variant carries the same core driver, surge protection package, and thermal management architecture, so specifiers receive predictable photometric behaviour and warranty terms whether they choose the side-entry road optic or the post-top decorative silhouette for a landscape zone.
| Model platform | BGP499 (SE, PT, SP, SP+Chess, SP+Dome) |
|---|---|
| System wattage | 33W / 66W / 100W |
| Lumen output | 3,000 to 12,000 lm (±10%) |
| Efficacy | 100 to 120 plus lm/W |
| CCT | 3000K / 4000K standard (2700K, 5000K, 6500K on request) |
| CRI | 70 or higher |
| Rated life | 50,000 hours (L70/B50) at Ta 40°C |
| Input voltage | 110 to 277 VAC, 50/60 Hz |
| Power factor | Above 0.9 at full load, 220 VAC |
| Surge protection | 10/15 kV SPD |
| Ingress / impact | IP65 / IK08 |
| Housing | Die-cast aluminium, 5 mm tempered glass or PC cover |
| Weight | 7.5 to 11.5 kg (variant dependent) |
| Approvals | CQC, CB, SAA, CE (others on request) |
| Compliance | China RoHS 2.0, REACH, EU RoHS |
| Warranty | 3 years standard, extendable |
| Control options | 7-pin NEMA socket, dimmable driver |

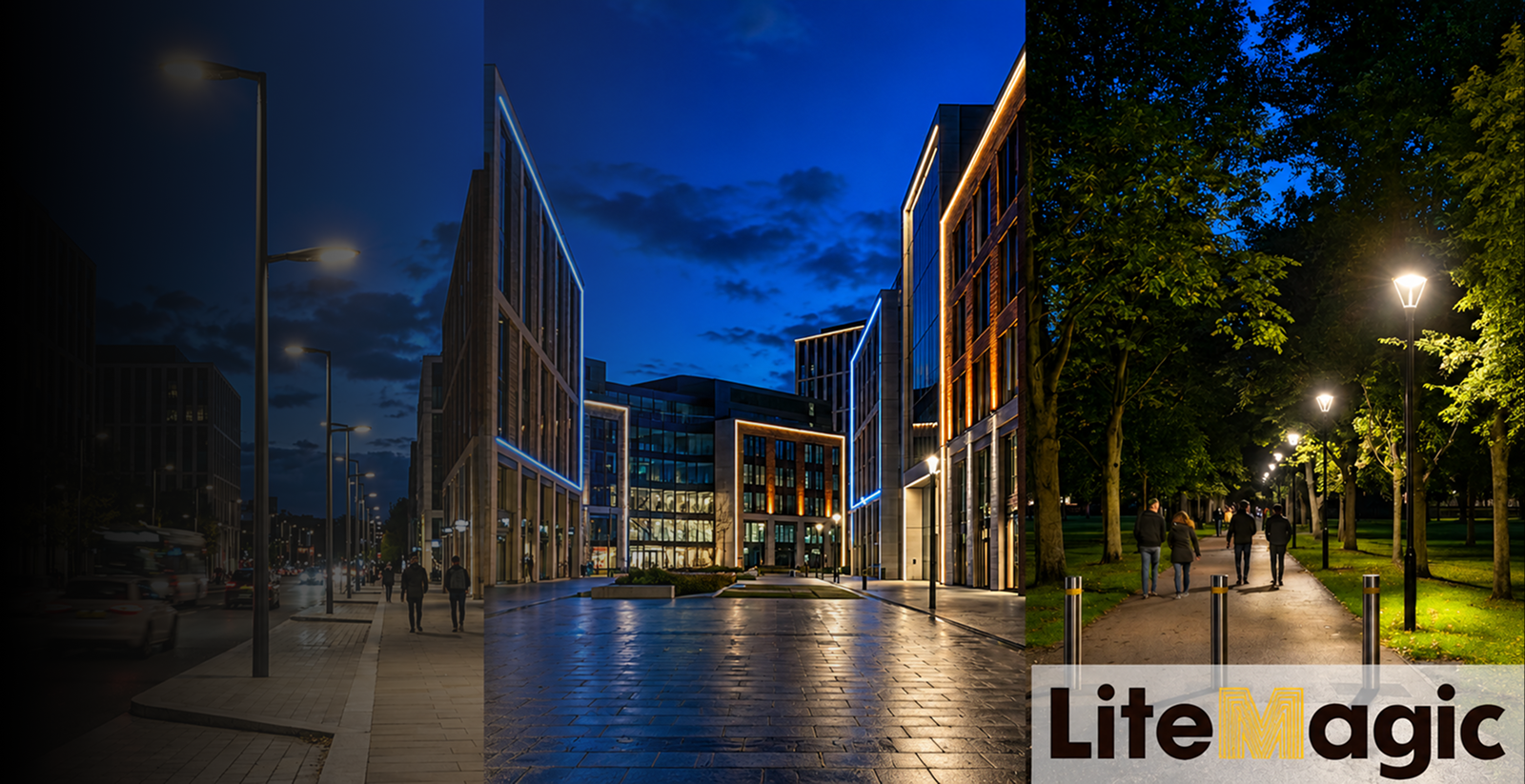

The LiteMagic Urban luminaire is well suited for municipal walkways, master-planned residential communities, and mixed-use plazas across the region where consistent night-time performance and refined fixture aesthetics both matter. Its modular platform lets specifiers standardise on a single design language across pedestrianised streets, developer landscape zones, and community park upgrades without compromising photometric outcomes.
