LiteMagic Street Gen2 Gerab Energy Systems

Overview

As a trusted partner in advanced lighting infrastructure, Gerab Energy Systems supplies the high-efficacy Light MagicLED street lighting solution built for municipalities, developers, and infrastructure operators. The luminaire pairs a sustainable design with intelligent connectivity and future-proof optics, delivering measurable energy savings, longer service life, and simplified upgrades for large municipal street lighting programmes across the region.

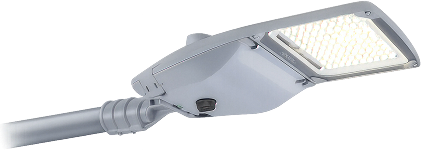

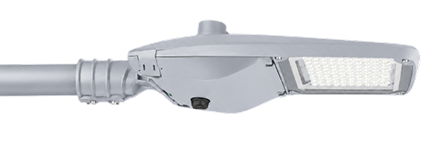

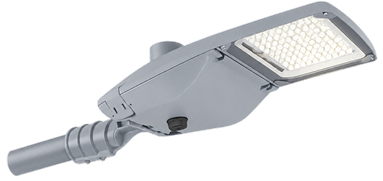

The BRP500 luminaire houses a high-power LED engine within a streamlined die-cast aluminium body, purpose-built to withstand harsh outdoor conditions. Its spiked thermal surface stays cooler while resisting dust build-up. With flexible wattage packages, multiple mounting options, and toolless serviceability, this outdoor LED luminaire delivers dependable performance across urban, suburban, and highway lighting scenarios.

Delivers up to 33,300 lumens with 150 lm/W system efficacy and CCT options from 2700K to 5700K for versatile photometric design
Ruggedised IP66 and IK08 housing operates from 40°C below zero up to 50°C ambient, tested against 3G vibration and category 5 typhoon wind loads
Built-in Zhaga-D4i socket and NEMA 7-pin port enable smart street lighting control, remote metering, and IoT-based asset management
Toolless access to the gear box, SPD, gear tray, and optical cavity reduces field service time and lifetime maintenance cost

Every element of the luminaire is engineered to strengthen return on investment for large streetlight rollouts. From thermal design and toolless serviceability to Zhaga-D4i socket readiness, each feature reduces field labour, extends component life, or unlocks connected control for adaptive energy management across long asset lifecycles.

High efficacy at 150 lm/W (4000K CCT) for optimised energy performance
Streamlined thermal design with easy-cleaning surface fins
Toolless installation and toolless maintenance for gear box components
Zhaga-D4i and NEMA 7-pin sockets for connected lighting readiness
Flexible side-entry and post-top mounting with adjustable tilt angle
15kV surge protection device safeguards internal electronics
50,000 hour rated lifetime at L80B10 in 50°C ambient conditions
Category 5 typhoon wind resistance and 3G vibration certification

Product Family	BRP500 Series
Variants	Small, Medium, Large, XLarge
Wattage Range	45W, 80W, 150W, 220W
Luminous Flux	Up to 33,300 lm
System Efficacy	150 lm/W typical at 4000K
CCT Options	3000K, 4000K standard; 2700K, 5700K optional
CRI	70 typical
Optical Distribution	UMV / UWV
Control Interface	1-10V, StepDim, DALI 2.0, DynaDim, SR/D4i, Coded Mains
System Interface	NEMA 7-pin top, Zhaga-D4i SR socket bottom
Surge Protection	15kV SPD
Ingress Protection	IP66
Impact Rating	IK08
Insulation Class	Class I
Operating Temperature	40°C below zero to 50°C ambient
Lifetime	50,000 hours L80B10 at 50°C
Housing	Die-cast aluminium with front glass
Mounting	Side-entry 48 to 60 mm, Post-top 60 to 76 mm, adjustable tilt
Approvals	CB, CE, Zhaga-D4i
