Overview

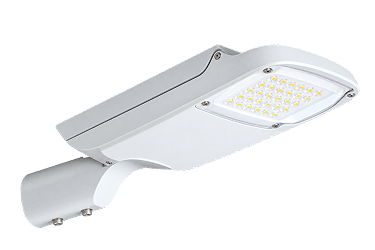

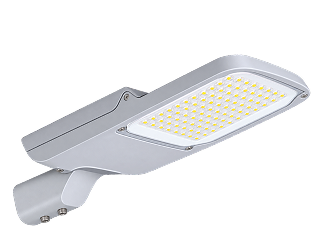

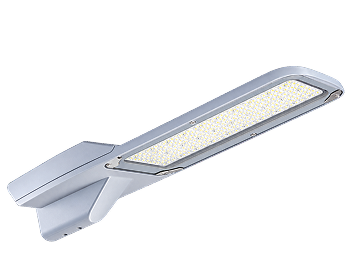

LiteMagic Street BRP600 is a high-performance road and street lighting platform engineered to improve safety, reduce operating costs and support modern urban lighting requirements. Its clean architectural design is combined with high system efficacy, professional photometric performance, smart-control capability and service-friendly construction, making it suitable for applications ranging from major highways to residential and urban roads

The BRP600 range delivers up to 83,000 lumens, system efficacy of 150+ lm/W and power configurations up to 550W. A broad product family – from BRP600 XS to BRP600 XXL – allows the luminaire to address different road widths, mounting requirements and lighting-performance needs.

High-performance LED lighting with system efficacy of 150+ lm/W
Light output of up to 83,000 lumens
System wattage up to 550W
100,000-hour L90 lifetime at Ta 50°C
More than 90% lumen maintenance after 100,000 hours
Professional photometric design for effective road illumination
Tempered-glass optical cover
IP66 ingress protection
IK09 impact resistance; IK08 for XL and XXL versions
3G vibration tested
Designed for Category 5 typhoon resistance up to 57 m/s
Sulfuration-tested materials for long-term LED protection
Replaceable 10kV/15kV surge protection device
Toolless maintenance with quick access to gearbox, SPD and gear tray
Adjustable mounting/spigot options for precise aiming
Smart-ready control supporting Coded Mains, DALI and D4i
Optional NEMA and Zhaga sockets
ZD4i compliant
Low-CCT options designed to support human and wildlife-sensitive applications
Sheltered lighting design with zero uplight for light-pollution control

Maximum Luminous Flux	Up to 83,000 lm
System Efficacy	150+ lm/W, typical @ 4000K
Maximum System Wattage	Up to 550W
Standard CCT	3000K / 4000K
Additional CCT Option	2700K
CRI	70
Lifetime	100,000 hrs, L90 @ Ta 50°C
Optical Cover	Tempered Glass
Light Distribution	DM7M / DWL1 / DM12V / DWA / DWB / DMC
Surge Protection Replaceable 10kV / 15kV SPD	Surge Protection Replaceable 10kV / 15kV SPD
IEC Protection Class Class I	IEC Protection Class Class I
Operating Temperature -40°C to +50°C	Operating Temperature -40°C to +50°C
IP Rating IP66	IP Rating IP66
IK Rating IK09; IK08 for XL & XXL	IK Rating IK09; IK08 for XL & XXL
Mounting	Mounting Side-entry; optional post-top
Pole/Spigot Diameter 42-60 mm	Pole/Spigot Diameter 42-60 mm
Side-entry Tilt Optional ±5° / ±10° / ±15°	Side-entry Tilt Optional ±5° / ±10° / ±15°
Post-top Tilt	±5°
Maintenance	Maintenance Toolless gearbox / SPD / gear tray access
Control Interface Coded Mains / DALI / D4i	Control Interface Coded Mains / DALI / D4i
System Interface NEMA/SR option on top; SR option at bottom	System Interface NEMA/SR option on top; SR option at bottom
Approvals	Approvals CB / CE / ENEC / ZD4i
