GACS™ Adiabatic Cooling System is a product designed to function as a pre cooler to the standard Air-Cooled Chiller. It reduces the incoming air temperature to chiller condenser coils resulting in a significant improvement in Air-Cooled Chiller efficiency. This improvement will result into (a) Reduction in chiller electrical consumption by up to 35% and (b) Increases in chiller cooling capacity by up to 40%.
CONDENSER PROTECTIVE FILTER
Made of polyurethan alloy cell material that is mounted into an aluminum casing. The Condenser Protective Filter gets installed on the front of chiller condenser coils, protects it from calcium and mineral (limescale) deposits dirt, direct, sunlight and does not allow the water mist to pass through it and come into direct contact with the condenser coil.
HIGH-PRESSURE NOZZLE PANEL
Consists of high resistance aluminum casing and stainless-steel micro-nozzles lines with high pressure misting nozzles and all connection components, mounted opposite to the condenser protective filter. The high-pressure misting nozzle panel creates a fine mist wall which comes in contact with the incoming hot air to condenser coil allowing the adiabatic process to take place.

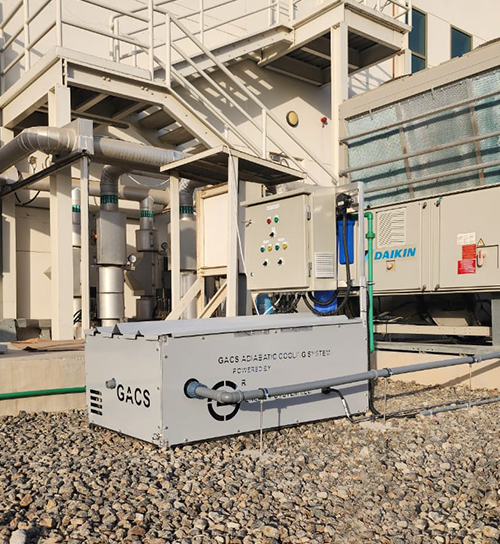

PUMP STATION AND WATER TREATMENT
Designed to produce fine mist and collect the non-evaporative water droplets using intelligent sequence of operation. The pump station includes high-pressure pumps that operates at 50- 70 bars pressure, valves, water recirculation Module and 4-stage water purification & treatment levels, UV sterilization block for protection against CaCo3, Bacteria and Legionella.
CONTROL UNIT
Designed to enable the system to use precise amount of water required at different weather conditions and chiller load. The controller analyses relative air humidity, air temperature and chiller load & airflow, then processes the data to regulate the high-pressure pumps to produce fine mist for maximum efficiency.
Condenser Protective Filter
High-pressure nozzle panel
Pump station and water treatment
Control unit
Protects Condenser coils from dust, rust, calcium, and mineral deposit (limescale) &
Direct Sunlight.
Protects Air-Cooled Chiller from overheating / tripping.
Advanced control unit analyses ambient temperature & relative humidity and chiller fan
load ensuring evaporation efficiency up to 90% with no water losses/ dripping.
Four-stages of filtration and treatment: assures elimination of dirt, mineral deposit,
bacteria from the sprayed fine mist.
High durability and long-term reliable performance.
Fits all types of Air-Cooled Chillers, modular setup, easy to install and maintain.
Up to 35% chiller energy savings
Upto 40% increase in chiller cooling capacity
Up to 2o c above wet bulb temperature drop
Reduces gas pressure in chiller gas circuit that minimizes compressor’s load and enhance cop
100% protection of the condensers from direct sun light, dust, mineral deposit, calcium and rust
GACS™ Adiabatic Cooling System combines an adiabatic evaporative cooling process, condenser protection, water purification and intelligent sequence of operation.

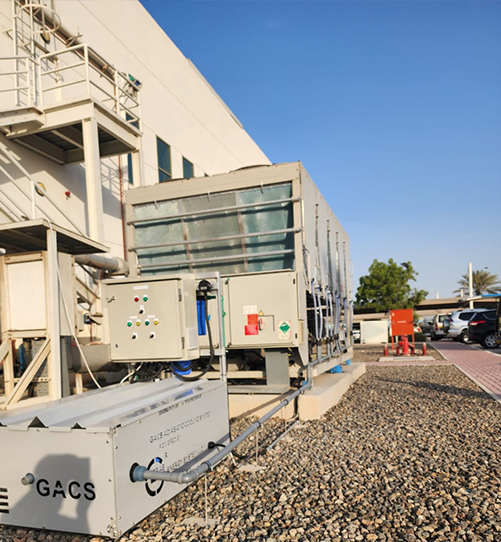

The system is mounted in front of condenser coil of the Air-Cooled
Chiller protected by air protection filters preventing condenser coils from calcium and mineral deposit formation (limescale), rust and direct sunlight as well as eliminate water droplets to reach the condenser coils.
The system includes 4 stages of water purification & treatment to ensure sustainable performance and protection of the chiller as well as includes a recirculation module that ensures 100% of water usage.
The system generates fine mist powered by intelligent sequence of operation which largely evaporates instantaneously and ensures significant reduction in the temperature of the incoming
air into the condenser coils.
Is a leading designer and manufacturer of the Adiabatic Cooling System for Air-Cooled Chillers with a strong track record of providing high quality products, services and turnkey solutions for adiabatic cooling system design, supply, installation, testing, commissioning, measurement, verification, and annual maintenance contracts.
We focus on manufacturing systems for applications including residential and commercial buildings, data centers, and any other facilities that utilize Air-Cooled Chillers. Our efforts have been recognized by many clients to whom GACS™ have successfully implemented adiabatic cooling system.
Based in the UAE, we are innovators of technologically advanced cooling solutions that deliver industrial connectivity benefits, reduce energy, and water consumption and automatically control Legionella risk. That’s why our products are the chosen option for some of the world’s most reputable OEMs.
We work at the forefront of industrial and commercial connectivity, with integrated PLC (Programmable Logic Controller) interfaces as standard, for smart environments and a combination of temperature probes for data collection and analysis
We strive to deliver optimum adiabatic cooling system performance for each individual project. Our mechanical & energy engineers have the skills and experience required to develop bespoke product design alternations which suit challenging installation environments, working hands-on to create a cooling solution that is designed within your site’s exacting specification variables.
Our products are manufactured in UAE, fully built, with control panels supplied fitted and pre-wired. Every GACS™ Adiabatic Cooling System ensure our designs are safe and our standards uncompromising.
Taking a consultative approach to best practice specification, our experienced team will produce fit-for-purpose, data-rich proposals designed to optimize adiabatic cooling system performance on a project-by-project basis. Don’t take our word for it though, we’ll provide you with all the thermal, water and energy consumption and climatic data we’ve used to work out your achievable ROI, so that you can specify our products with complete confidence.
We’re proud to be a customer-centric, family owned and managed business. We work hard to maintain long standing relationships with our customers, adding value to their supply chain with our efficient product specification processes, established logistics and delivery services, alongside fast, convenient installation, testing and commissioning with customized annual maintenance by experienced team.
